ESP32-S3 Smart IR RF Controller – KinCony KC868-AGv3
KinCony KC868-AGv3 is a smart IR controller designed for smart home automation and IoT projects. It is based on the ESP32-S3-WROOM-1U N16R8 module, with powerful performance and rich interfaces for infrared, RF433MHz, and custom GPIO expansion.
KC868-AGv3 supports Home Assistant, ESPHome, Arduino IDE, MicroPython, and ESP-IDF development. With KinCony KCS v3 firmware, it also supports MQTT Home Assistant Auto Discovery, so users can integrate sensors and decoded IR signals into Home Assistant without writing configuration code.
Main Features
- ESP32-S3-WROOM-1U N16R8 module
- Built-in IR receiver
- IR sending via 3 GPIO channels
- 2 independent IR extension cable ports
- Built-in RF433MHz receiver
- Built-in RF433MHz sender
- Built-in buzzer
- 18 free GPIO ports on PCB
- Supports Home Assistant
- Supports ESPHome YAML configuration
- Supports Arduino IDE, MicroPython, and ESP-IDF development
- Supports KCS v3 firmware
- MQTT Home Assistant Auto Discovery
- Zero-code integration with Home Assistant using KCS firmware
- Suitable for smart home, IoT, IR control, RF remote control, and automation projects
Home Assistant Integration
KC868-AGv3 can be used with Home Assistant in two ways.
Users can configure the device with ESPHome YAML for customized automation projects.
It can also run KinCony KCS v3 firmware. With KCS v3 firmware, KC868-AGv3 supports MQTT Home Assistant Auto Discovery. Sensors and decoded IR signals can be automatically discovered in Home Assistant, making setup much easier without writing configuration code.
IR and RF Control
KC868-AGv3 includes both infrared and RF433MHz functions.

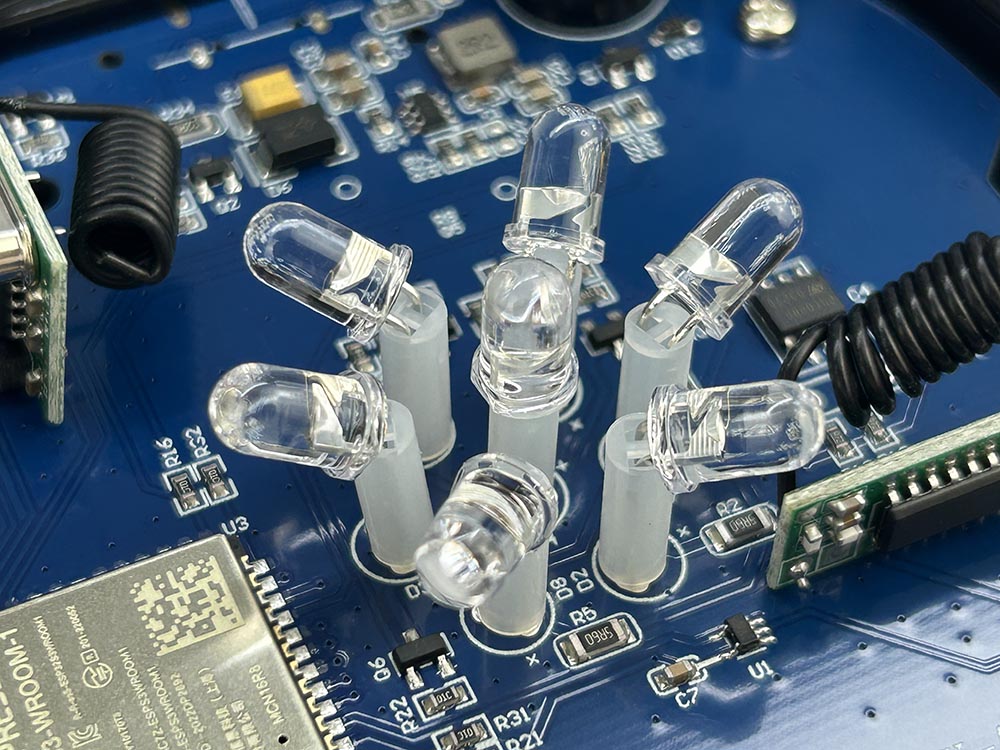

The built-in IR receiver can be used to learn and decode infrared remote control signals. The IR sender can transmit IR signals through 3 GPIO channels, including onboard IR output and 2 independent IR extension cable ports.
The RF433MHz receiver and sender allow the controller to work with 433MHz wireless remote controls, sensors, and RF devices.
Hardware Specifications

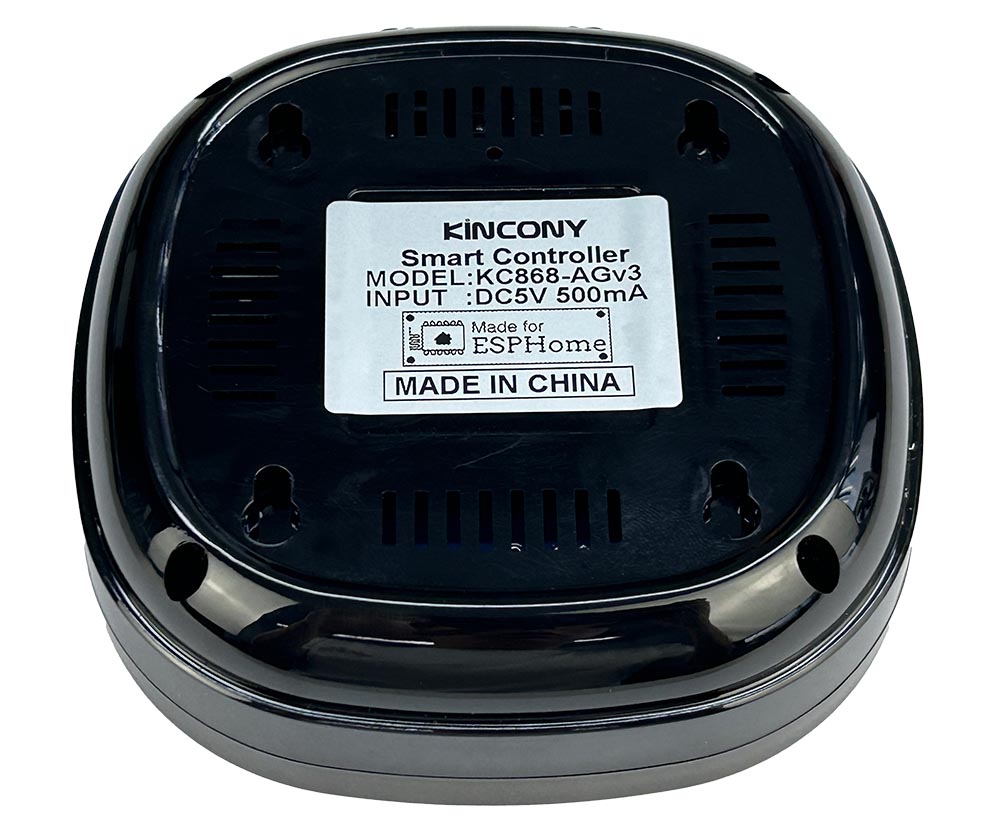

| Item | Description |
|---|---|
| Model | KinCony KC868-AGv3 |

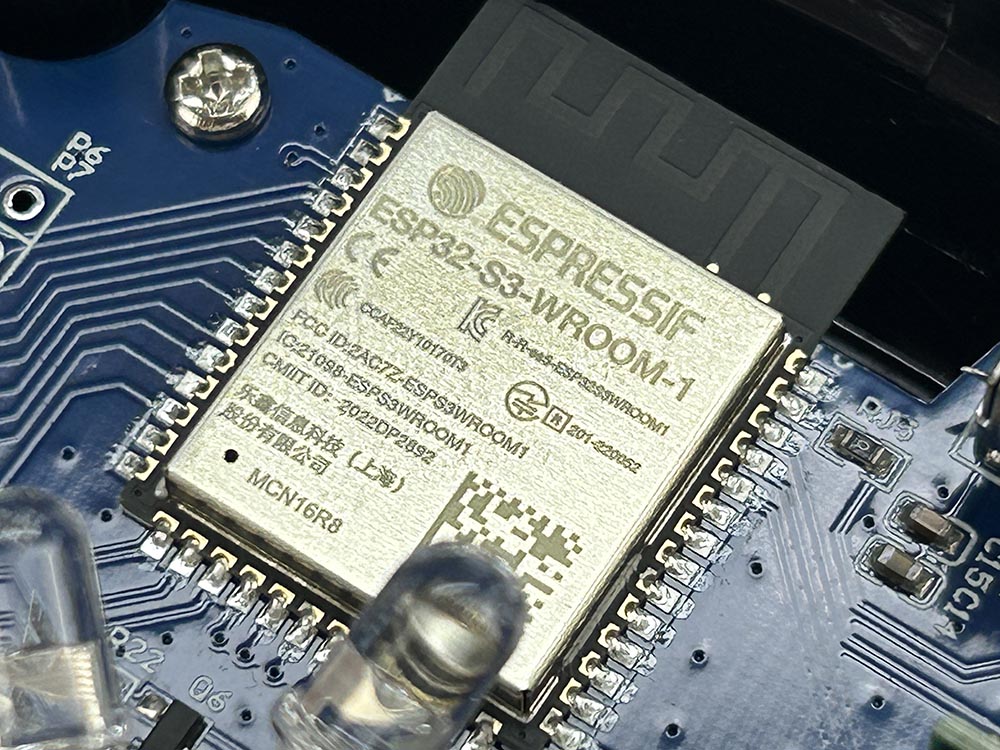

| Processor | ESP32-S3-WROOM-1U N16R8 |
| Power Supply | DC 5V via USB-C |
| Free GPIOs | 18 |
| IR Receiver | 1 |
| IR Sender | 3 GPIO channels |
| IR Extension Cable Ports | 2 independent ports |

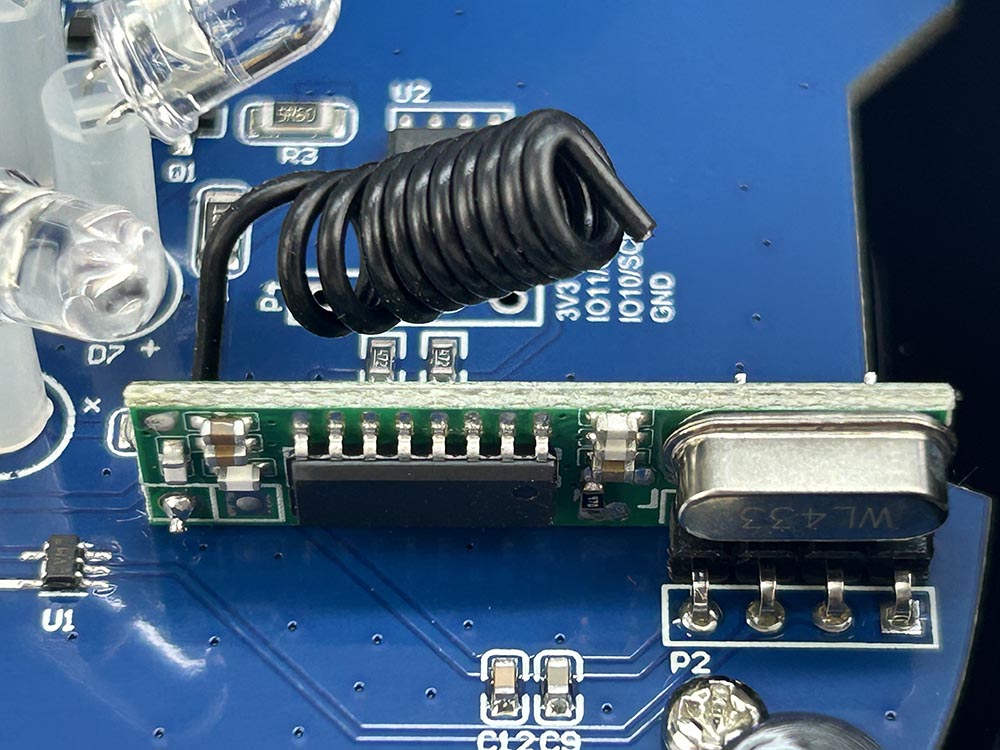

| RF433MHz Receiver | 1 |

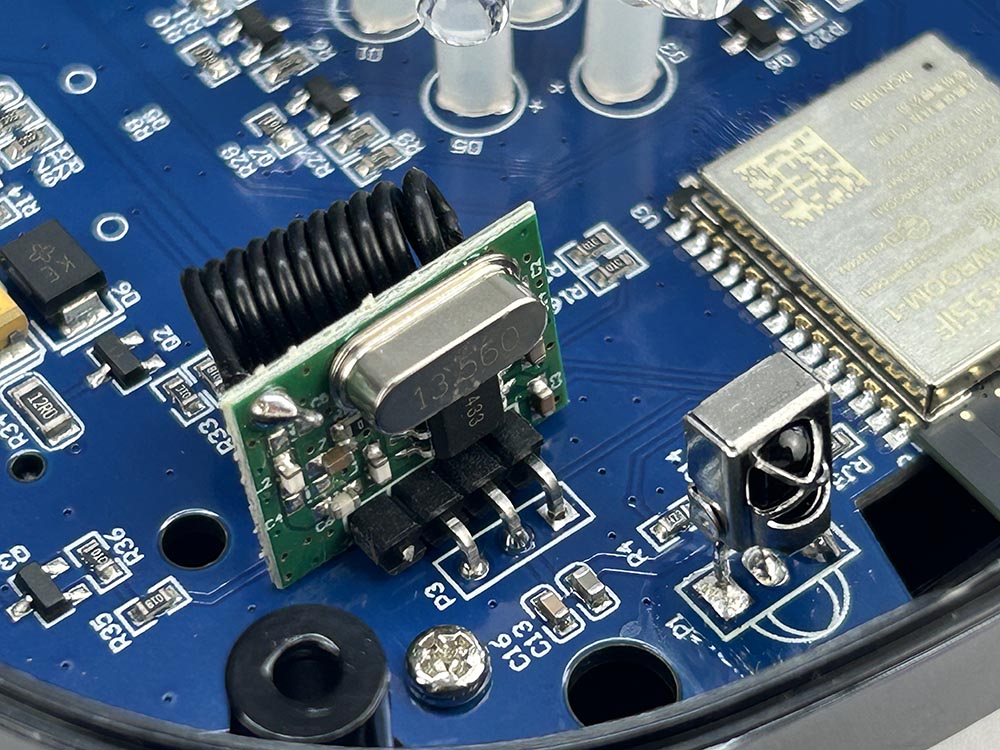

| RF433MHz Sender | 1 |
| Buzzer | 1 |
| Size | 100mm × 100mm × 30mm |
Software Support
KC868-AGv3 supports multiple software platforms and development environments:
- Home Assistant
- ESPHome
- KinCony KCS v3 firmware
- MQTT
- Arduino IDE
- MicroPython
- ESP-IDF
Package List
Bundle A
- KC868-AGv3 controller × 1
- USB-C cable × 1
Bundle B
- KC868-AGv3 controller × 1
- USB-C cable × 1

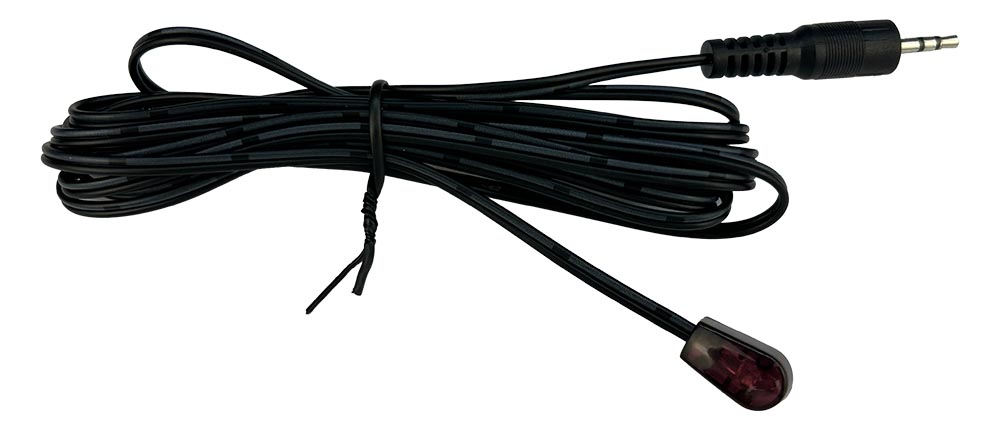

- IR extension cable, 2 meters × 2
Application
KC868-AGv3 is suitable for:
- Smart home IR control
- Air conditioner remote control
- TV and media device control
- RF433MHz remote control projects
- Home Assistant automation
- ESPHome DIY projects
- IoT learning and development
- Smart scene control
- Wireless sensor integration
KinCony KC868-AGv3 provides a flexible and powerful solution for IR, RF433MHz, and ESP32-S3 smart home automation projects.

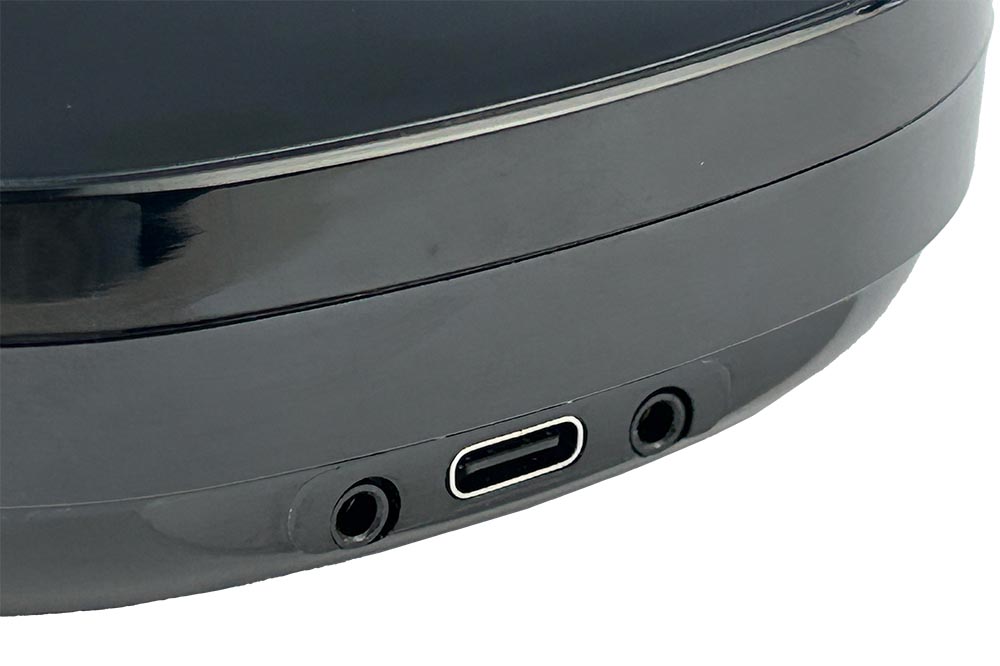

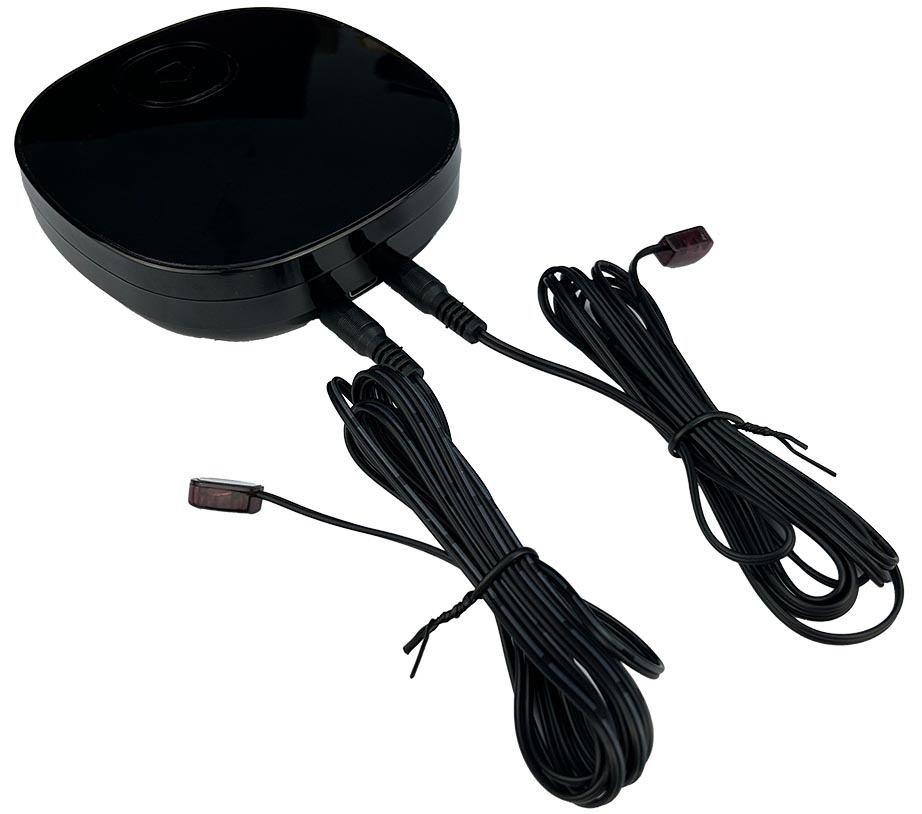

extend by IR cables.

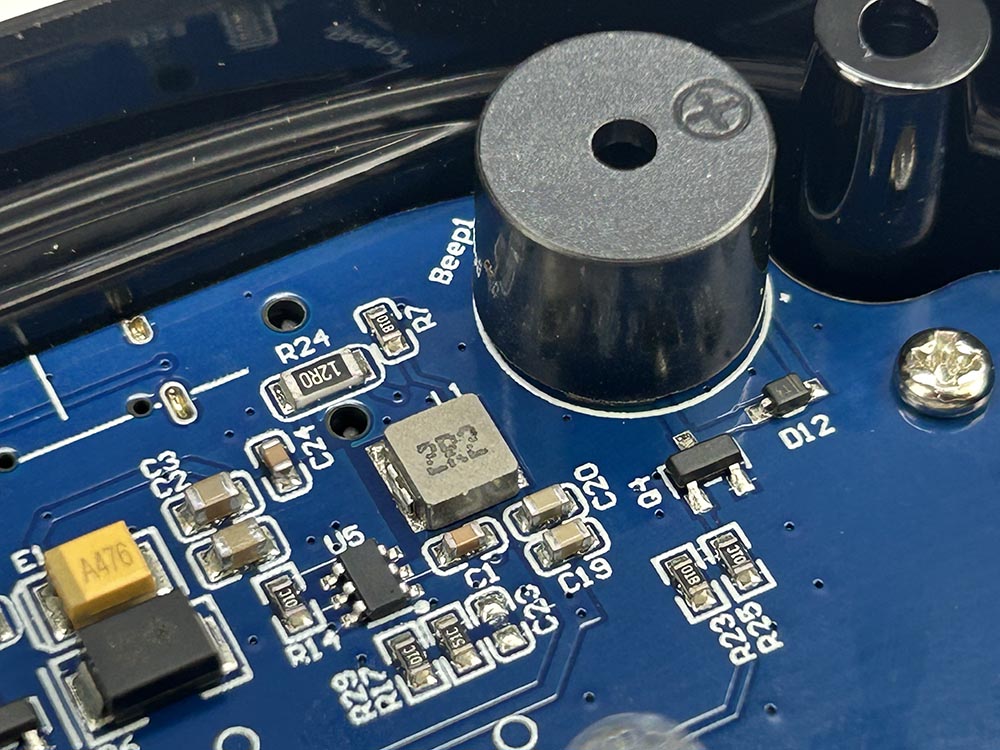

beep on PCB.

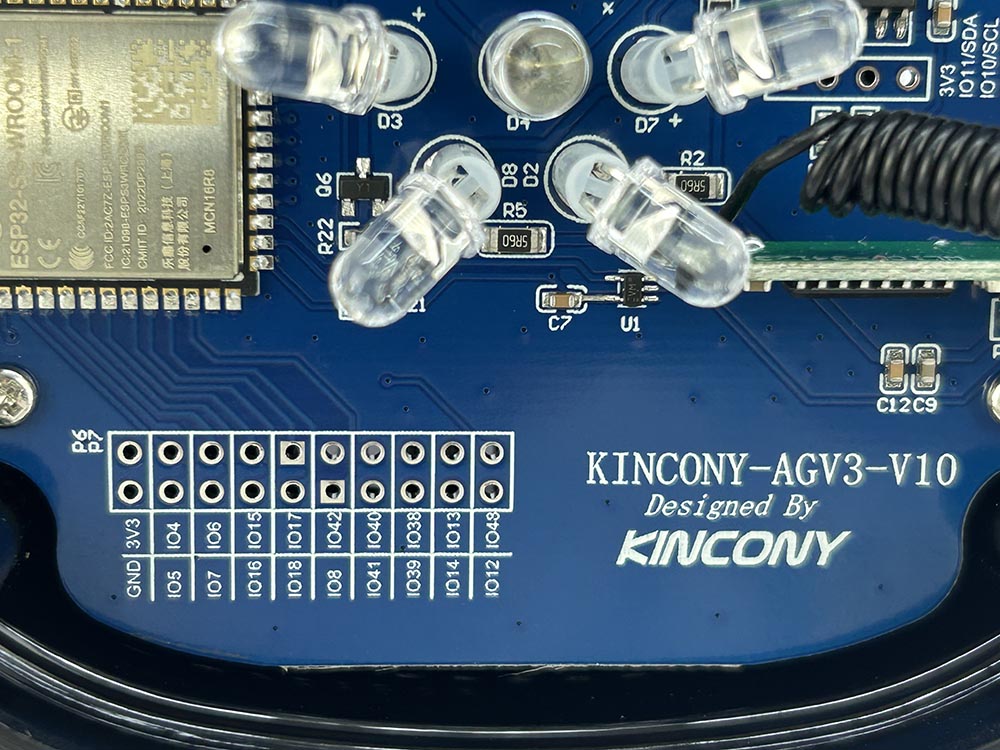

free gpios on PCB.
